SAS HDD Sanitizer (Data Destroyer) – MTS-SAS Series
SAS HDD Sanitizer; Data Destroyer
MTS-SAS is a SAS HDD Sanitizer or you can call it a Data Destroyer which contains 10 Data Sanitization Functions.
High Speed SAS / SATA Hard Disk and SSD Sanitizer (Data Eraser) –
MTS-SAS Series
More than 10 Data Sanitization Functions: Full erase, DoD erase and Secure erase, comply with NIST SP 800-88r1 and DoD 5220-M Standards.
Log report records detail of all erase tasks for audit purpose.
Free licensing, no extra cost per erase.
Direct supports 2.5″, 3.5″ SAS and SATA HDD, SSD.
Supports multiple HDD/SSD interfaces with its open platform design.

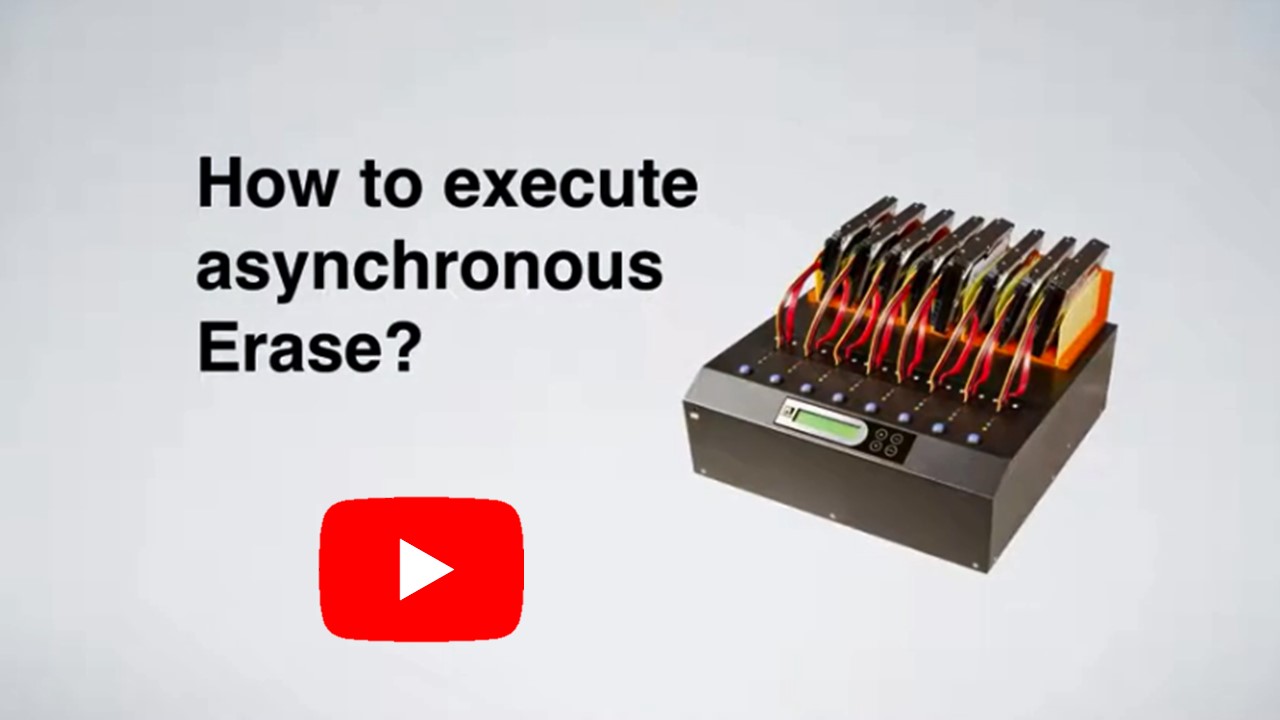

Fast Erase Key enables the end-user to perform erase functions asynchronously.
Features an optional connection for real-time monitoring on a PC.
U-Reach MTS-SAS series is a professional data eraser for SAS and SATA HDD/SSD devices, specially designed for high volume sanitization. U-Reach adopted a unique multitasking technology that can asynchronously wipe out data up to 16 devices with a high transfer speed of 30 GB per minute. There are more than 10 sanitization modes which are complying with NIST or DoD standards and have been adopted by many countries’s government, army or international institutes. In addition, the MTS-SAS sanitizer is equipped with some copy functions, the quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/exFAT), and Mac (HFS, HFS+, HFSX) formats are all supported with quick copy mode.
Sanitize Functions
Full Erase | Erases entire device(s), complying with NIST SP 800-88r1 (Clear) Standards. |
|---|---|
DoD Erase | Erases device(s), complying with DoD 5220.22-M Standards. |
DoD Erase + Compare | Erases device(s), complying with DoD 5220.22-M Standards and verifies complete erasure. |
7-Pass Erase | Erases device(s) 7 times complying with DoD 5220.22-M(ECE) Standards. |
Secure Erase | Erases the non-loadable areas complying with NIST SP 800-88r1 (Purge) Standards. |
NSA Erase | Erases device(s) complying with NSA Standards. |
US Army AR 380-19 | Erases device(s) complying with “Army Regulation 380-19” by the US Army. |
Sanitize Block Erase | Erases the non-loadable areas complying with NIST SP 800-88r1 (Purge) Standards for SAS SSD(s). |
Sanitize Purge | Erases the non-loadable areas complying with NIST SP 800-88r1 (Purge) Standards for SAS hard disk drive(s). |
Transfer Speed
U-Reach MTS-SAS sanitizer transfers up to 30 GB/min on all devices simultaneously, without any speed degradation as the number of targets increases.
Skip Bad Sectors
End-users are given options to skip bad sectors during erasing device(s).
Event Log Report
U-Reach Log Report records all detail information of erase job and easy to output and store by an USB pen drive. It is an important tool for audit purpose.
Fast Erase Key
Fast Erase Key enables the end-user to perform erase functions asynchronously.
Modular Cable Design
When cables wear out, users can quickly swap them out, saving time and money.
Optional Adapters Supported
Support All types of SATA interface via different adapters.
Copy Functions
 | Quick Copy | The duplicator automatically copies only the data area, supports Windows (FAT16/32/exFAT/NTFS), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX). |
|---|---|---|
 | Whole Media | The duplicator copies from the initial sector to the end, bit-by-bit. |
 | All Partitions | The duplicator copies all the partitions and skips undefined area. |
 | Percentage | Sets percentage of source capacity to copy. |
| Models | MTS-400SAS / MTS-800SAS / MTS-1600SAS | ||
| Specifications | |||
| Max. Transfer Speed | 30 GB/min. (500 MB/sec.) *Actual performance is dependent on device transfer rate. |
||
| Operating Type | Stand-alone, non PC-based operation | ||
| Language Support | English, Japanese | ||
| LCD Display | Backlit Monochrome LCD Display | ||
| LEDs |
3 LED Indicators per Port: Yellow (Power), Green (Pass), Red (Fail) |
||
| Control Panel | 4 Push Buttons (▲, ▼, OK, ESC) | ||
| Features | Sanitization Modes | Full Erase, DoD Erase, DoD Erase+Compare, 7-Pass Erase, Secure Erase, NSA Erase, US Army AR 380-19, BMB21-2007, Sanitize Block Erase and Sanitize Purge. | |
| Skip Bad-Sectors | Manually set (Bad sector) threshold range to skip during erase and copy process. | ||
| Erase Certificate | Erase logs generated through the USB port and saved to USB devices. | ||
| PC Monitoring | Real-time status monitoring through PC. | ||
| Special Features | Copy Modes | Quick Copy, All Partitions Copy, Whole HDD Copy, and Percentage Copy | |
| Compare Function | Bit-for-bit data comparison. | ||
| Compatibilities | OS Supported | All (Windows, Linux, and other stand-alone systems) | |
| Compatible Interfaces | w/o Adapters | 1.8″/2.5″/3.5” SAS / SATA HDDs and SSDs | |
| w/ Adapters | IDE, microSATA, mSATA, eSATA, SATA M.2(NGFF) and CFast | ||
| Advanced Formats | Supports MBR, GPT, and advanced formats. | ||
|
Hardware Specifications |
Power Supply | Selectable Voltage 115V or 230V, 50/60Hz | |
| Temperature Range | Operating Temperatures: 5°C ~ 45°C (41°F ~ 113°F) Storage Temperatures: -20°C ~ 85°C (-4°F ~ 185°F) |
||
| Humidity Range | Working Humidity: 20% ~ 80% Storage Humidity: 5% ~ 95% |
||
| Certification | FCC, CE, RoHS | ||
**Specifications subject to change without notice.
| Function List for MTS-SAS Series | ||
|---|---|---|
| 1. Copy | ||
| 2. Compare | ||
| 3. Copy +Compare | ||
| 4. Erase | 1. Quick Erase | |
| 2. Full Erase | ||
| 3. DoD Erase | ||
| 4. DoD EraseComp | ||
| 5. 7-Pass Erase | ||
| 6. Secure Erase | ||
| 7. Enhanced Secure Erase | ||
| 8. NSA Erase | ||
| 9. US Army AR 380-19 | ||
| 10. Sanitize Block Erase | ||
| 11. Sanitize Purge | ||
| 5. Utility | 1. Show Disk Info. | |
| 2. Update System | ||
| 3. System Info. | ||
| 4. Verify HDD | ||
| 5. Strict Verify HDD | ||
| 6. Unlock HDD | ||
| 7. Calc. MD5 Value | ||
| 8. Calc. SHA256 Value | ||
| 6. Setup | 1. Start-up Menu | |
| 2. Copy Area | System and Files | |
| ALL Partitions | ||
| Whole HDD | ||
| Percentage (%) | ||
| 3. Copy GPT Backup Area | ||
| 4. Skip Errors | ||
| 5. Minimum Speed | ||
| 6. Check Source Minimum Speed | ||
| 7. Language | ||
| 8. Delete Disk Signature After Copy | ||
| 9. Advanced Setup | 1. Unknown Format | |
| 2. Erase Master | ||
| 3. Erase Pattern | ||
| 4. Skip Erase Errors | ||
| 5. Wait HDD Time | ||
| 6. Timeout Time | ||
| 7. Timeout Retry | ||
| 8. Lock Key | ||
| 9. Copy HPA Area | ||
| 10. Clear HPA at ERASE | ||
| 11. Mark After Erase | ||
| 12. Transfer Rate | ||
| 13. Stop Motor Time | ||
| 14. Verify After Erase | ||
| 15. LED Dispaly Mode | ||
| 10. Restore Default | ||
| 7. Log Manager | 1. Out Today Report | |
| 2. Out Recent Report | ||
| 3. Out Period Date | ||
| 4. Advanced Function | 1. Clear ALL Log | |
| 2. Setup Password | ||
| 3. Adjust Clock | ||
| 4. Add Watermark at text File | ||
