High Speed SAS Hard Drive Duplicator- MTS-SAS Series
MTS-SAS Series is a SAS Hard Drive Duplicator which can handle data copy for both SAS and SATA Devices. Lean more…
High Speed SAS / SATA Hard Disk and SSD Duplicator – MTS-SAS Series
Supports both SAS & SATA I/II/III and 4Kn HDD interface up to 30 GB/min transfer speeds.
Systems & files copy mode supports Windows (FAT16/32/exFAT, NTFS), Linux(ext2/ext3/ext4/LVM), and Mac(HFS, HFS+, HFSX.)
Supports multiple HDD/SSD interfaces with its open platform design.
Supports 2.5″, 3.5″ SAS and SATA HDD, SSD and IDE HDD via IDE_SATA convertor. (IDE to SATA adapter-TB1529 is optional)
Data Sanitization: Full erase, DoD erase and Secure erase.
Features an optional connection for real-time monitoring on a PC.
Log report management records all task details for enhanced production management.
U-Reach MTS-SAS series is a professional HDD/SSD duplicator, specially designed for high volume duplication. U-Reach adopted a unique multitasking technology that can simultaneously copy 15 HDD targets with a high transfer speed of 30 GB per minute. We guarantee the highest productivity without speed degradation, even as the number of targets increase. The MTS-SAS series SAS HDD duplicator provides four copy modes: quick smart copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/exFAT), and Mac (HFS, HFS+, HFSX) formats are all supported with quick copy mode. In addition, the MTS-SAS duplicator is equipped with different levels of erase functions, Full Erase, DoD 5220 Erase government standards and Secure Erase, which can fulfill different levels of HDD wiping security.
4 Copy Modes
 | Quick Copy | The duplicator automatically copies only the data area, supports Windows (FAT16/32/exFAT/NTFS), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX). |
|---|---|---|
 | Whole Media | The duplicator copies from the initial sector to the end, bit-by-bit. |
 | All Partitions | The duplicator copies all the partitions and skips undefined area. |
 | Percentage | Sets percentage of source capacity to copy. |
Transfer Speed
U-Reach MTS-SAS duplicators copy up to 30 GB/min on all devices simultaneously, without any speed degradation as the number of targets increases.
Verification of Data Integrity
Copies are straightforward, but it is imperative that the copied data are verified through a bit-by-bit process to ensure successful copies.
Optional Adapters Supported
Support All types of SATA interface via different adapters.
Skip Bad Sectors
End-users are given options to skip bad sectors from the source device.

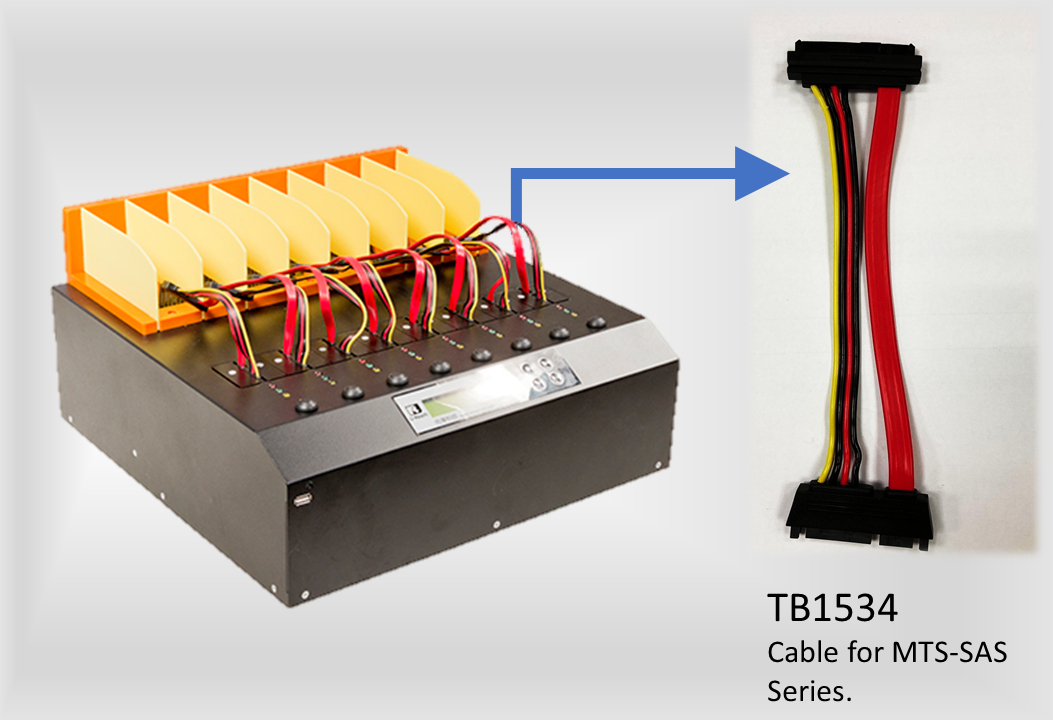

Modular Cable Design
When cables wear out, users can quickly swap them out, saving time and money.
Sanitization Functions
Erase Functionality Compliant with NIST SP 800-88r1 and DoD 5220-M Standards Secure erase functions wipe drive contents within seconds.
Event Log Report
U-Reach Log Report records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
| Models | MTS400SAS / MTS800SAS / MTS1600SAS | ||
| Specifications | |||
| Max. Transfer Speed | 30 GB/min. (500 MB/sec.) *Actual performance is dependent on device transfer rate. | ||
| Supported Formats | All Partitions/Whole HDD/Percentage: copies all types of formats, both known and unknown. | ||
| Quick Copy: copies FAT16/32/exFAT, Windows (NTFS), Mac (HFS/HFS+/HFSX), and Linux (ext2/3/4). | |||
| Operating Type | Stand-alone, non PC-based operation | ||
| Language Support | English, Japanese | ||
| LCD Display | Backlit Monochrome LCD Display | ||
| LEDs |
3 LED Indicators per Port: Yellow (Power), Green (Pass), Red (Fail) |
||
| Control Panel | 4 Push Buttons (▲, ▼, OK, ESC) | ||
| Features | Copy Modes | Quick Copy, All Partitions Copy, Whole HDD Copy, and Percentage Copy | |
| Skip Bad-Sectors | Manually set (Bad sector) threshold range to skip during copy and erase process. | ||
| Compare Function | Bit-for-bit data comparison. | ||
| Sanitization Modes | Quick Erase, Full Erase, DoD Erase, and Secure Erase | ||
| Special Features | PC Monitoring | Real-time status monitoring through PC. | |
|
Log Report Management |
Monitor real-time recordings and Log Reports via PC-Link. | ||
| Event log reports are generated through the USB port and saved to USB devices. | |||
| Compatibilities | OS Supported | All (Windows, Linux, and other stand-alone systems) | |
| Compatible Interfaces | w/o Adapters | 1.8″/2.5″/3.5” SAS / SATA HDDs and SSDs | |
| w/ Adapters | IDE, microSATA, mSATA, eSATA, SATA M.2(NGFF) and CFast | ||
| Advanced Formats | Supports MBR, GPT, and advanced formats. | ||
|
Hardware Specifications |
Power Supply | Selectable Voltage 115V or 230V, 50/60Hz | |
| Temperature Range | Operating Temperatures: 5°C ~ 45°C (41°F ~ 113°F) Storage Temperatures: -20°C ~ 85°C (-4°F ~ 185°F) |
||
| Humidity Range | Working Humidity: 20% ~ 80% Storage Humidity: 5% ~ 95% |
||
| Certification | FCC, CE, RoHS | ||
**Specifications subject to change without notice.
| Function List for MTS-SAS Series | ||
|---|---|---|
| 1. Copy | ||
| 2. Compare | ||
| 3. Copy +Compare | ||
| 4. Erase | 1. Quick Erase | |
| 2. Full Erase | ||
| 3. DoD Erase | ||
| 4. DoD EraseComp | ||
| 5. 7-Pass Erase | ||
| 6. Secure Erase | ||
| 7. Enhanced Secure Erase | ||
| 8. NSA Erase | ||
| 9. US Army AR 380-19 | ||
| 10. Sanitize Block Erase | ||
| 11. Sanitize Purge | ||
| 5. Utility | 1. Show Disk Info. | |
| 2. Update System | ||
| 3. System Info. | ||
| 4. Verify HDD | ||
| 5. Strict Verify HDD | ||
| 6. Unlock HDD | ||
| 7. Calc. MD5 Value | ||
| 8. Calc. SHA256 Value | ||
| 6. Setup | 1. Start-up Menu | |
| 2. Copy Area | System and Files | |
| ALL Partitions | ||
| Whole HDD | ||
| Percentage (%) | ||
| 3. Copy GPT Backup Area | ||
| 4. Skip Errors | ||
| 5. Minimum Speed | ||
| 6. Check Source Minimum Speed | ||
| 7. Language | ||
| 8. Delete Disk Signature After Copy | ||
| 9. Advanced Setup | 1. Unknown Format | |
| 2. Erase Master | ||
| 3. Erase Pattern | ||
| 4. Skip Erase Errors | ||
| 5. Wait HDD Time | ||
| 6. Timeout Time | ||
| 7. Timeout Retry | ||
| 8. Lock Key | ||
| 9. Copy HPA Area | ||
| 10. Clear HPA at ERASE | ||
| 11. Mark After Erase | ||
| 12. Transfer Rate | ||
| 13. Stop Motor Time | ||
| 14. Verify After Erase | ||
| 15. LED Dispaly Mode | ||
| 10. Restore Default | ||
| 7. Log Manager | 1. Out Today Report | |
| 2. Out Recent Report | ||
| 3. Out Period Date | ||
| 4. Advanced Function | 1. Clear ALL Log | |
| 2. Setup Password | ||
| 3. Adjust Clock | ||
| 4. Add Watermark at text File | ||
U-Reach MTS-SAS series is a professional HDD/SSD duplicator, specially designed for high volume duplication. U-Reach adopted a unique multitasking technology that can simultaneously copy 15 HDD targets with a high transfer speed of 30 GB per minute. We guarantee the highest productivity without speed degradation, even as the number of targets increase. The MTS-SAS series SAS HDD duplicator provides four copy modes: quick smart copy, all partitions copy, percentage copy and whole HDD copy that all meet different duplication task requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT (16/32/exFAT), and Mac (HFS, HFS+, HFSX) formats are all supported with quick copy mode. In addition, the MTS-SAS duplicator is equipped with different levels of erase functions, Full Erase, DoD 5220 Erase government standards and Secure Erase, which can fulfill different levels of HDD wiping security.
4 Copy Modes
| Quick Copy | The duplicator automatically copies only the data area, supports Windows (FAT16/32/exFAT/NTFS), Linux (ext2/ext3/ext4/LVM), and Mac (HFS/HFS+/HFSX). |
|---|---|---|
| Whole Media | The duplicator copies from the initial sector to the end, bit-by-bit. |
| All Partitions | The duplicator copies all the partitions and skips undefined area. |
| Percentage | Sets percentage of source capacity to copy. |
Transfer Speed
U-Reach MT-H duplicators copy up to 30 GB/min on all devices simultaneously, without any speed degradation as the number of targets increases.
Verification of Data Integrity
Copies are straightforward, but it is imperative that the copied data are verified through a bit-by-bit process to ensure successful copies.
Optional Adapters Supported
Support All types of SATA interface via different adapters.
Skip Bad Sectors
End-users are given options to skip bad sectors from the source device.
Modular Cable Design
When cables wear out, users can quickly swap them out, saving time and money.
Sanitization Functions
Erase Functionality Compliant with NIST SP 800-88r1 and DoD 5220-M Standards Secure erase functions wipe drive contents within seconds.
Event Log Report
U-Reach Log Report records the operation results and other information of each devices completely. It is an important asset for production management and analysis.
