SSD Diagnostic Tool; Hard Drive Tester
U-Reach MT Series is a tester for SATA HDD and SATA SSD. It scans bad sector and counts read speed and write speed of the device.
Previous slide
Next slide
SSD / Hard Disk Inspector –
MT-G Series
Read / Write Speed Test
Bad Sector Scanning
Real Capacity Check
Quality Check Report
Secure Erase: Reset the device back to default.
Product Description
Specification
Manual
Comparison Chart
Video
Product Description
The quality of SSD on the market varies greatly. It does not matter if you are a buyer or seller of pen drives, you would need an efficient way to exam/ sort out the quality level of HDD/ SSD devices. U-Reach provides HDD Quality Examinations to satisfy the need of quality checking. Our solution applies multi-core transfer technology. Thus, compare to PC, the QC performance will highly increase with less labor cost.
Verify HDD (Basic Quality Check)
The Verify HDD function runs writing and reading test from LBA 0 to the last. During testing, devices are able to set up standards for examination. 1. Minimum read/write speed. 2. The bad-sector tolerance. 3. Able to set the transfer rate of devices.
Sanitization Functions
Erase Functionality Compliant with NIST SP 800-88r1 and DoD 5220-M Standards Secure erase functions wipe drive contents within seconds.
Skip Bad Sectors
End-users are given options to skip bad sectors when executing “Verify HDD” or “Erase”.
Quality Check Report
Event Log Report is an important asset Management tool to assist users in monitoring and recording the whole quality checking process. It records all details of each task. For example, checking function, working time, model number, serial number of media, read speed and write speed, results…etc. To provide log report as a quality proof is capable to increase the value and trust of the dealing goods.

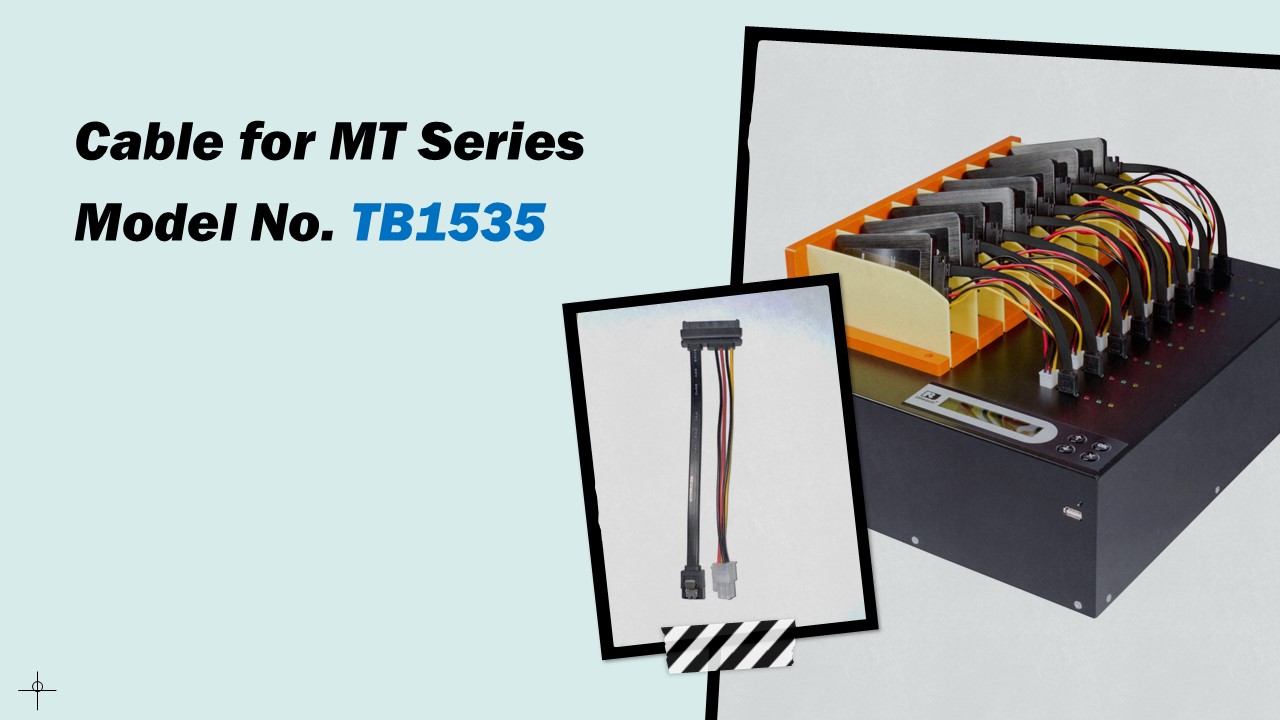

Modular Cable Design
When cables wear out, users can quickly swap them out, saving time and money.Specification
| Models | MT800G / MT1600G / MT2400G | ||
| Specifications | |||
| Max. Transfer Speed | 9.0 GB/min. (150MB/sec.) *Actual performance is dependent on device transfer rate. | ||
| Supported Formats | All Partitions/Whole HDD/Percentage: copies all types of formats, both known and unknown. | ||
| Quick Copy: copies FAT16/32/exFAT, Windows (NTFS), Mac (HFS/HFS+/HFSX), and Linux (ext2/3/4). | |||
| Operating Type | Stand-alone, non PC-based operation | ||
| Language Support | English, Japanese | ||
| LCD Display | Backlit Monochrome LCD Display | ||
| LEDs | 3 LED Indicators per Port: Yellow (Power), Green (Pass), Red (Fail) | ||
| Control Panel | 4 Push Buttons (▲, ▼, OK, ESC) | ||
| Features | Copy Modes | Quick Copy, All Partitions Copy, Whole HDD Copy, and Percentage Copy | |
| Skip Bad-Sectors | Manually set (Bad sector) threshold range to skip during copy and erase process. | ||
| Compare Function | Bit-for-bit data comparison. | ||
| Sanitization Modes | Quick Erase, Full Erase, DoD Erase, and Secure Erase | ||
Special Features | PC Monitoring | Real-time status monitoring through PC. | |
Log Report Management | Monitor real-time recordings and Log Reports via PC-Link. | ||
| Event log reports are generated through the USB port and saved to USB devices. | |||
| Compatibilities | OS Supported | All (Windows, Linux, and other stand-alone systems) | |
| Compatible Interfaces | w/o Adapters | 1.8″/2.5″/3.5” SATA HDDs and SSDs | |
| w/ Adapters | IDE, microSATA, mSATA, eSATA, SATA M.2(NGFF) and CFast | ||
| Advanced Formats | Supports MBR, GPT, and advanced formats. | ||
Hardware Specifications | Power Supply | Selectable Voltage 115V or 230V, 50/60Hz | |
| Temperature Range | Operating Temperatures: 5°C ~ 45°C (41°F ~ 113°F) Storage Temperatures: -20°C ~ 85°C (-4°F ~ 185°F) | ||
| Humidity Range | Working Humidity: 20% ~ 80% Storage Humidity: 5% ~ 95% | ||
| Certification | FCC, CE, RoHS | ||
**Specifications subject to change without notice.
Manual
| Function List for MT Series | |||||
|---|---|---|---|---|---|
| 1.Copy | |||||
| 2.Compare | |||||
| 3.Copy+Compare | |||||
| 4.Erase | 1. Quick Erase | ||||
| 2. Full Erase | |||||
| 3. DoD Erase | |||||
| 4. DoD EraseComp | |||||
| 5. 7-Pass Erase | |||||
| 6. Secure Erase | |||||
| 7. Enhanced Secure Erase | |||||
| 8. US Army AR380-19 | |||||
| 5. Utility | 1. Show Device Info | ||||
| 2. Update System | |||||
| 3. System Info. | |||||
| 4. Verify HDD | |||||
| 5. Strict Verify HDD | |||||
| 6. Setup | 1. Start-up Menu | ||||
| 2. Copy Area | System and Files | ||||
| ALL Partitions | |||||
| Whole HDD | |||||
| Percentage(%) | |||||
| Deep Analysis | |||||
| 3. Copy GPT Backup Area | |||||
| 4. Skip Bad Sectors | |||||
| 5. Minimum Speed | |||||
| 6. Check Source Minimum Speed | |||||
| 7. Language | |||||
| 8. Advanced Setup | 1. Unknown Format | ||||
| 2. Erase Master | |||||
| 3. Erase Pattern | |||||
| 4. Skip Erase Errors | |||||
| 5. Wait HDD Time | |||||
| 6. Lock Key | |||||
| 7. HPA Copy Mode | |||||
| 8. Clear HPA at ERASE | |||||
| 9. Mark after ERASE | |||||
| 10. Transfer Rate | |||||
| 11. Stop Motor Time | |||||
| 12. Bytes Per Cmd | |||||
| 13. Delete Disk Signature After Copy | |||||
| 9. Restore Defaults | |||||
| 7. Log Manager | 1. Out Today Report | ||||
| 2. Out Recent Report | |||||
| 3. Out Period Date | |||||
| 4. Advanced Function | 1. Clear ALL Logs | ||||
| 2. Setup Password | |||||
| 3. Adjust Clock | |||||
| 4. Add Watermark at text File | |||||
